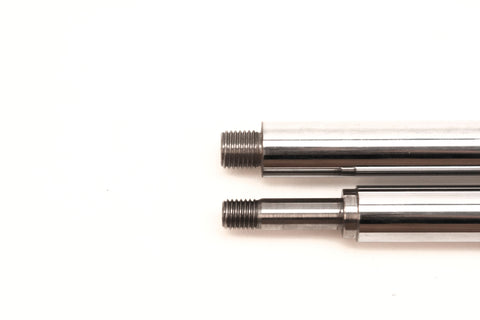

KYB / HPG - Shaft , 16mm od x 10.23" tlg, 9mm Post, Smart Shox
Part Number:
Available
Includes (1) Shaft
Applications:
Commonly found on KYB Smart Shox IFS.
Dimensions:
Shaft OD: 16mm
Shaft Total Length: 10.23"
Post Length: 9mm-1.25 x 1.5"
Mount: USE With Eyelet 23-35-009 (10.7" Tip to Center Eye)
In order to provide you with the correct fitment, please measure the shaft. Contact us if you need a spec not listed.
A. Shaft Total Length:
Measure the entire length of the shaft from end to end.
B. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.
C. Post Length:
Measure the post from the end of the chrome to the end of the threads.
D. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.
Recommended Shaft Clamp #64-35-030-A
