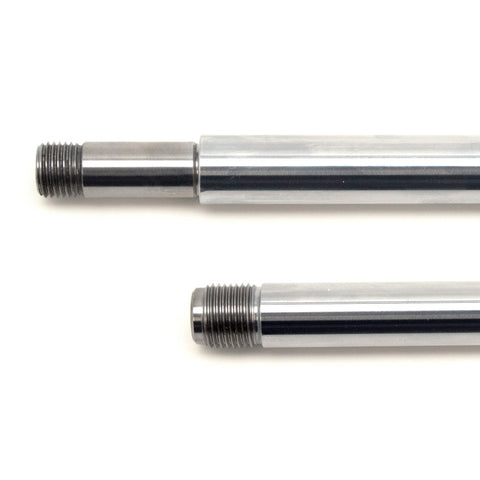

Fox - Shock Shaft, 0.625", Non-RA, (Select Length)

Includes (1) Shaft

Dimensions

• Shaft OD: 0.625"
• Shaft Total Length: Select above
• Post Length: 1.4"
• Post TPI: 1/2"-20
• Mount Length: 0.65"
• Mount TPI: 5/8"-20

In order to provide you with the correct fitment, please measure the shaft and choose the measurements above.

 View Measurement Diagram

A. Shaft Total Length:

Measure the entire length of the shaft from end to end.

B. Chrome Length:

Measure the length from beginning of the chrome to the end of the chrome.

C. Post Length:

Measure the post from the end of the chrome to the end of the threads.

D. Mount Length:

Measure the mount from the end of the chrome to the end of the threads.

Part Number:

This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.
